Blue Light Laser Uses @Circadea
445 ± 5nm Traverse Spped 3000mm/3m/minute
400x430mm
15.75 x 17
32 bit processor
GRBL  (update firmware)
Lightburn

Official Ortur User Group | Facebook
Do not upgrade
Laser Facts



Catalog of Products
Cronos machine RUIDA TRECON? Endurancehttps://ae01.alicdn.com/kf/He484b42beda2425c9c7257624734a9310/New-Z-Axis-Module-For-Laser-Engraver-To-Adjust-The-Height-In-15W-Laser-Engraving-Machine.png_50x50.png
Trocen
https://forum.lightburnsoftware.com/t/adding-a-diode-to-ruida-machine/13630/10
https://www.amazon.com/Controller-Linkage-RDC6442S-Engraver-Discounts%EF%BC%89/dp/B07BFSP7BX

20x20 profile.

Dry Moly Spray

used this dry moly lube as a replacement for CerMark for laser etching on stainless steel bottle openers, and it worked great! For those trying to do something similar, here's how I did it. The equipment was a Universal 40W CO2 laser. To prep the bottle openers I peeled off the stickers that they came with and cleaned off the gunk with ispropyl. I sprayed the side I wanted to mark with the dry moly and waited a half hour for it to dry, then sprayed on a second coat. To mark I used the stainless steel direct marking Universal material pre-set (100% power and ~7% speed). I was only doing text (no grayscale rasterings) but the etchings came out great. To remove the excess moly coating after the laser, I soaked the openers in a shallow bin of isopropyl for about 15 minutes and it just wiped off with a sponge (the photos below are before final cleaning, just rubbed with a scrubbing sponge under running water).


Cardboard
Bamboo
Ceramic Tile
White Ceramic Tile
Plexiglass (Black) full 50mm 8 loops 2.5mm?
Paint removal Name Pllates
Circuit Board Resist
Leather
Balsa
Plywood 1.5 - 5mm
Signs
Bamboo
Foam Board
Cloth 500mm minute
Styrofoam letters
Cronos z axs 20x40 profile

Rotating Axis
ztable
https://www.youtube.com/watch?v=RdnyG61gL0s
https://www.youtube.com/watch?v=RdnyG61gL0s
Product size (L x W x H): 57.00 x 55.00 x 17.52 cm / 22.44 x 21.65 x 6.9 inches
Package size (L x W x H): 58.00 x 20.00 x 11.00 cm / 22.83 x 7.87 x 4.33 inches

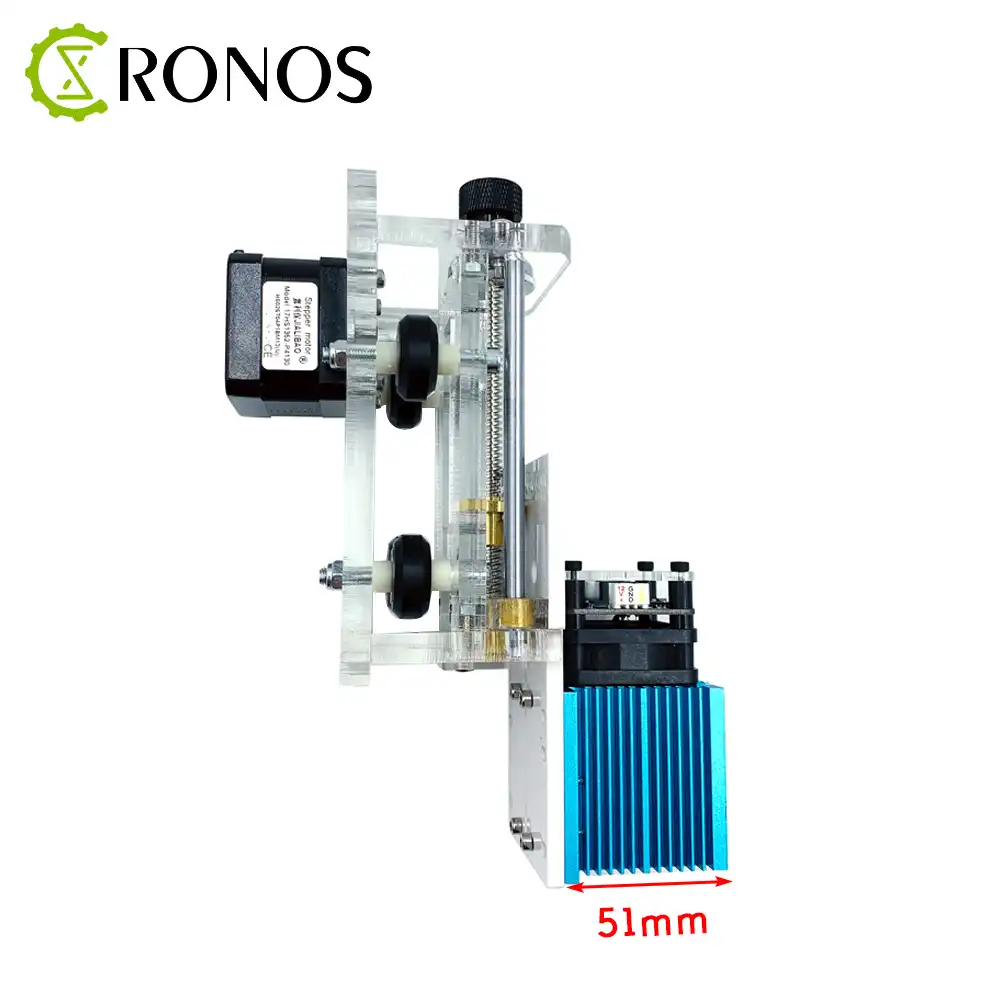

Endurance upgrade lasers.
 See original image
CRONOSMAKER
 Laser Mount











Cardboard


Life of Laser
Lightburn
G8 Lens
Cardboard Cutting   30 passes
ORTUR 15w
z axis modification
air assist



Lightburn
60-100% 15watt depending on thickness of cardboard.
10mm second full power
20mm second 30 passes cut through
30mm second 40 passes clean on this particular cardboard
faster less chance of fire.
40mm second 40 passes not through
20W
Recipe for cardboard is 23 passes speed 2300mm/m   - 50mm/second power 100 i have the ortur laser master 2 20W
Main Features:
Specialized Motherboard with STM32 MCU
It could preprocess 32 instructions, support baud rate as high as 921600, more powerful!
The Most Advanced 32Bits Laser Engraver Firmware
Ortur laser master firmware, smarter, faster, higher precision and easier to use.
● Laser power range coul
d be S0 - S1000, compared to 8bits desktop laser engravers, which only has S0 - S255, Ortur Laser Master could control laser beam more accurately, could even use the high power laser unit to "draw" a picture on paper , that the 8bits high power laser engravers could not do.
● Engraving speed could be as high as 3000MM/Min. ( If do not consider the laser carving result, the velocity of movement could be as high as 1000MM/S )
Active Position Protection
There is a G-sensor on the motherboard, if the machine detects unauthorized movement, the laser beam will stop.
Laser Beam Safety Guard
If your computer system halted or USB cable disconnected, led to that the laser engraver stops moving, the laser beam will stop, to prevent fire.
Exposure Duration Detection and Limitation
If laser engraver is under control, but users forget to operate and keep the laser beam working, extra safety will cut off in case the motor stopped moving, to prevent fire.
● LaserGRBL ( free software ) supports Windows XP, 7, 8, 10. LaserGRBL is the most popular carving software in the world, could import different format images, you could editing in PhotoShop, Inkscape, CAD, etc. and then connect to the engraver via laser LaserGRBL for engraving and cutting.
● LightBurn ( paid software, lightburnsoftware.com ) supports Windows, Mac OS, and Linux. It's the most popular paid carving software in the world, very easy to use.
● This laser engraver supports PWM mode.
● Pre-assembled parts, just need 10 - 20 minutes to install the machine.
● 400 x 430 mm large engraving area.
● Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance
● Synchronizing shaft mechanical structure, avoid out-sync on two Y rails, during full speed engraving.


$$
$0=20 (Step pulse time, microseconds)
$1=50 (Step idle delay, milliseconds)
$2=0 (Step pulse invert, mask)
$3=1 (Step direction invert, mask)
$4=0 (Invert step enable pin, boolean)
$5=0 (Invert limit pins, boolean)
$6=0 (Invert probe pin, boolean)
$10=1 (Status report options, mask)
$11=0.050 (Junction deviation, millimeters)
$12=0.002 (Arc tolerance, millimeters)
$13=0 (Report in inches, boolean)
$20=1 (Soft limits enable, boolean)
$21=1 (Hard limits enable, boolean)
$22=1 (Homing cycle enable, boolean)
$23=7 (Homing direction invert, mask)
$24=600.000 (Homing locate feed rate, mm/min)
$25=3000.000 (Homing search seek rate, mm/min)
$26=100 (Homing switch debounce delay, milliseconds)
$27=2.000 (Homing switch pull-off distance, millimeters)
$30=1000 (Maximum spindle speed, RPM)
$31=0 (Minimum spindle speed, RPM)
$32=1 (Laser-mode enable, boolean)
$33=250.000
$100=80.000 (X-axis travel resolution, step/mm)
$101=80.000 (Y-axis travel resolution, step/mm)
$102=80.000 (Z-axis travel resolution, step/mm)
$110=9000.000 (X-axis maximum rate, mm/min)
$111=9000.000 (Y-axis maximum rate, mm/min)
$112=9000.000 (Z-axis maximum rate, mm/min)
$120=2200.000 (X-axis acceleration, mm/sec^2)
$121=1800.000 (Y-axis acceleration, mm/sec^2)
$122=2500.000 (Z-axis acceleration, mm/sec^2)
$130=160.000 (X-axis maximum travel, millimeters)
$131=150.000 (Y-axis maximum travel, millimeters)
$132=1.000 (Z-axis maximum travel, millimeters)
